WALLKE H7 Step-Thru Electric Bike

Name: WALLKE H7 Step-Thru Electric Bike
Brand: Wallke
SKU: 30070
Price: 1599.99 EUR
Availability: InStock

Original price was: €1.999.99.Current price is: €1.599.99.

3 to 7 days delivery time

Color

Clear

SKU: N/A Categories: Electric Bikes, Cargo, Folding Bike, Fat Tyre, Step-Thru Brand: Wallke

FEATURES

48V/40AH Battery

25km/h Speed

20”x 4” Tire Size

Cadence Speed Sensor

Model	2026 H7AWD / 40Ah Battery / Dual Motor
Available Colors	Black, White
Climbing Angle	40°+
Motor	1000W + 1000W
System Voltage	48V
Peak Power	3200W
Torque	95N·m + 95N·m
Range Reference	Single drive: 70km Dual drive: 50km
Battery Type	Lithium-ion battery
Battery	48V 40Ah/1920Wh
Battery Weight	8.15kg
Charge Time	5–6 hours
Charger	48V 6A fast charger
Controller	Front 20A + rear 22A, integrated into one controller system
Display / App Protocol	Yolin YL81F-H dual-drive 5S protocol with 8P settings
Editable App Settings	Speed, standby time, single-trip range reset, assist level count, unit switching, password settings and factory reset

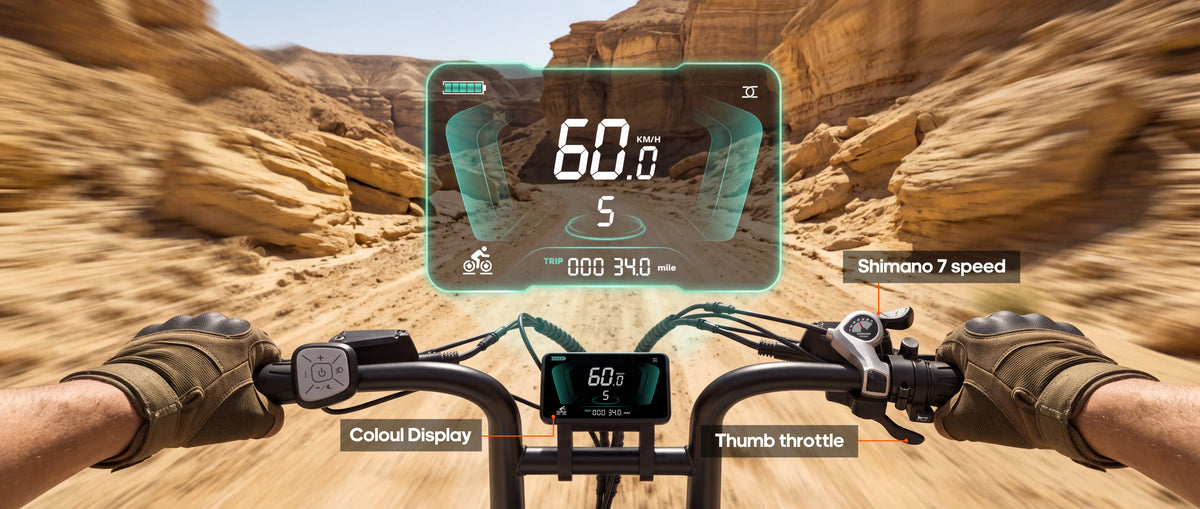

Display Information	Battery level, speed, riding mode, light status, single-trip distance, total mileage, maximum speed and average speed
Sensor	Cadence sensor
Frame	Thickened 6061 aluminum alloy frame, integrated rear rack and dual suspension
Fork	20-inch thickened hydraulic aluminum alloy suspension fork with lockout and adjustment controls
Rear Suspension	Aluminum alloy dual rear shocks with red springs
Throttle	Right-side thumb throttle with horn
Cables	Integrated waterproof main cable
Handlebar	Aluminum alloy, 660mm × 2.2T
Stem	Aluminum alloy handlebar and seat stem assembly
Seat Post	Adjustable-height aluminum alloy seat post
Saddle	Flip-up cruiser saddle
Shifter	Shimano 7-speed shifter
Rear Derailleur	Shimano 7-speed rear derailleur system
Freewheel	Shimano 7-speed freewheel
Crankset	Aluminum alloy chainring, 52T × 170mm
Pedals	Non-folding nylon pedals
Chain	142L, electroplated silver chain
Brakes	Dual-piston dual hydraulic disc brakes with oil pump and brake cut-off function
Brake Rotors	203 × 2.8mm thickened motorcycle-style rotors

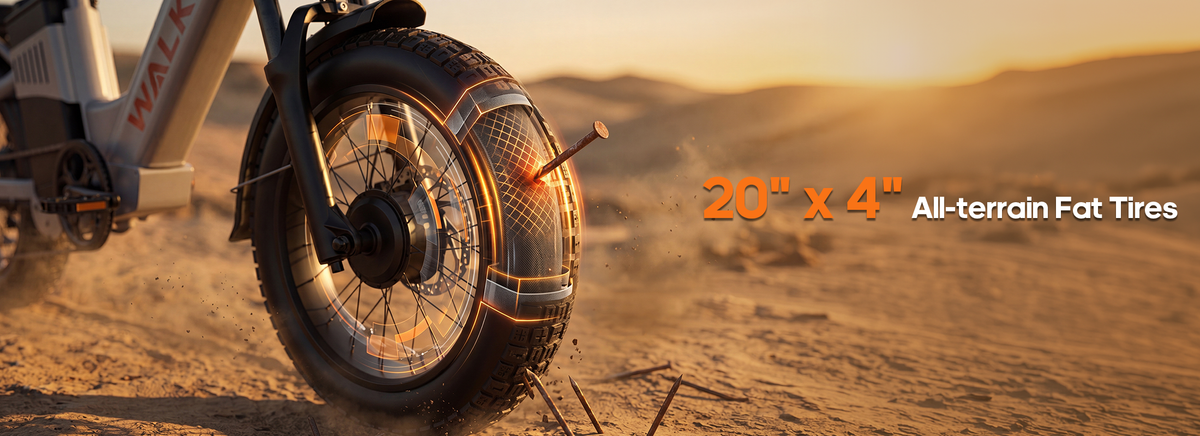

Tires	Chaoyang ARISUN 20 × 4-inch thickened puncture-resistant fat tires with internal protective mesh
Tire Size	20 × 4 inches
Tire Characteristics	Thickened, wear-resistant, quiet and puncture-resistant
Rims	Spoke wheels
Tubes	Rubber inner tubes
Headlight	48V 1000LM LED front light
Tail Light	Integrated taillight with brake signal
Fenders	Full-coverage thickened plastic fenders
Rear Rack	Integrated rear rack
Kickstand	Adjustable aluminum alloy side stand
Net Weight	62.7kg
Maximum Payload	181kg
Product Dimensions	164cm × 32cm × 78cm

Size

Item	Specification
Recommended Rider Height	174–198cm
Maximum Payload	181kg
Box Dimensions	164 × 32 × 78cm

Measurement	Size
A — Total Length	196cm
B — Wheelbase	140cm
C — Maximum Handlebar Height	129cm
D — Minimum Handlebar Height	129cm
E — Maximum Seat Height	112cm
F — Minimum Seat Height	88cm
G — Standover Height	50cm
H — Reach	63cm

What’s in the Box?

H7 AWD E-bike	*1
Battery	40Ah ×1（for 40Ah）
Battery Charger	6A Charger ×1（for 40Ah）
Keys for Battery	*2(Tie on the handlebar)
Fenders	*1
Headlight	*1
Saddle	*1
Pedals	*1 set
User Manual	*1
Assemble Tool Kits	*1

1000W*2

Motor

25km

Speed

40°+

Climbing

95+95NmTorque

Aluminum hydraulic front fork

20″ with lockout and adjustable damping. Delivers stable handling, improved shock absorption, and smooth ride performance on both road and off-road terrain.

Aluminum alloy structure and dual rear shock absorbers

Product details

Description

Built for riders who want more power and confidence on every journey. The H7AWD combines dual 1000W motors, a 48V 40Ah battery, full suspension, hydraulic disc brakes, and 20×4″ fat tires for a powerful, comfortable ride across city streets and varied terrain.

Performance

Max Torque：95N·m + 95N·m
Gear System：Shimano 7-Speed
Top Speed：25 km/h (EU Compliant)
Assist Mode：Pedal Assist (PAS)
Assist Levels：3 Levels
Range ：50-70 km

Battery & Power System

Battery： (48V 40Ah) Lithium-ion Battery
Battery Type：Removable Battery
Battery Management：Intelligent BMS Protection
Charging：6A Fast Charger
Charging Time：4–6 Hours

Frameset & Components

Controller：Front 20A + rear 22A, integrated into one controller system
Frame：Thickened 6061 aluminum alloy frame
Front Suspension：20-inch thickened hydraulic aluminum alloy suspension fork with lockout and adjustment controls
Rear Suspension：Aluminum alloy dual rear shocks with red springs
Brakes：Dual-piston dual hydraulic disc brakes with oil pump and brake cut-off function
Tires：20 × 4-inch thickened puncture-resistant fat tires with internal protective mesh
Max Payload：181 kg
Headlight：48V 1000LM LED front light
Trail Light：Integrated taillight with brake signal
Display：Yolin YL81F-H dual-drive 5S protocol with 8P settings
APP Control：Yes

User Manual

This owner’s handbook includes assembly and maintenance work which may need to be done at frequent intervals to maintain an operational and safe Wallke eBike. Never perform work on your Wallke eBike beyond instructions in this handbook. Please read the instructions entirely before assembly to ensure the proper functioning of the Wallke ebike.

Included in the Box

E-bike

Battery

Tool Kits

Charger

User Manual

Battery keys
